30-150m/Min Fiber Optic Cable Sheathing Line Ftth PVC Cable Extruder Machine

Product Categories

YUYANG MACHINE Co., Ltd.

Contact Now

30-150m/Min Fiber Optic Cable Sheathing Line Ftth PVC Cable Extruder Machine

Name: 30150mMin Fiber Optic Cable Sheathing Line Ftth PVC Cable Extruder Machine
Brand: yuyang
Price: 45 USD

Quality 30-150m/Min Fiber Optic Cable Sheathing Line Ftth PVC Cable Extruder Machine for sale

Brand Name : yuyang

Model Number : 50+25

Certification : CE, CCC, CE, ISO

Place of Origin : dongguan, china

MOQ : 1 set

Price : 45,000$-65,000$

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 25 days

Packaging Details : one set 20 feet container

motor : siemens

power : 25kw

converter : yaskawa

inverter : yaskawa

pay off : 400-500mm

speed : 120m/min(LSZH)

cable : Indoor optic fiber

take up : 400-630mm

Temperature : RKC

Screw speed : 20~100rpm

Extruding capacity (max) : 70kg/h

PLC : siemens

Contact Now

Apply to LSZH Plastic extruding , mainly for optic fiber reinforce cable insulation

Brand of parts

1. Motor : Siemens Brand

2 Frequency Converter : Japan YASKAWA

3 Temperature list : Japan RKC temperature table, PID Intelligent type Japan Brands

4 Electrical equipment : Taiwan Brand

5 PLC : Siemens

Main technical Parameter

1. cable: Indoor optic fiber

2. Production max speed: 120m/min(LSZH); 200m/min(PVC)

3. Pay off bobbin: 4 pcs

4. Pay off size: 25km and 50km

5. Pay off tension: 0.4N-1.5N

6. Extruder: 50*26

7. Take up tension: 5N-15N

8. Take up size: 400-630mm

9. Center height: 1000mm from the ground

10. Color: blue or gray, customer can choose others

11. OD change: 30-150m/min, ≦0.1mm; 30-150m/min, ≦0.05mm

12. Extruding loss: 1550nm:≦0.02dB/km(single mode fiber)

30-150m/Min Fiber Optic Cable Sheathing Line Ftth PVC Cable Extruder Machine

Product Tags:

200m/min PVC Cable Extruder Machine

70kg/h PVC Cable Extruder Machine

150m/Min PVC Cable Extruder Machine

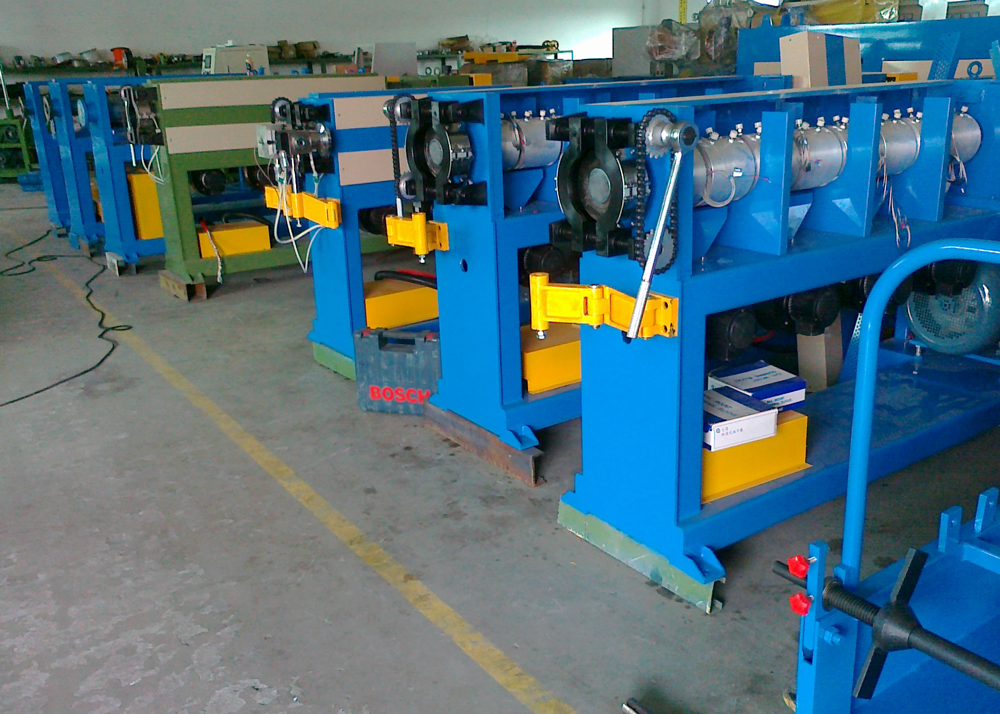

30-150m/Min Fiber Optic Cable Sheathing Line Ftth PVC Cable Extruder Machine Images
